Disco Duro Seagate ST-225 y controladora MFM
Prende y reconoce el disco, al utilizar Fdisk no logra crear particiones, hay que realizar un mantenimiento mas profundo.

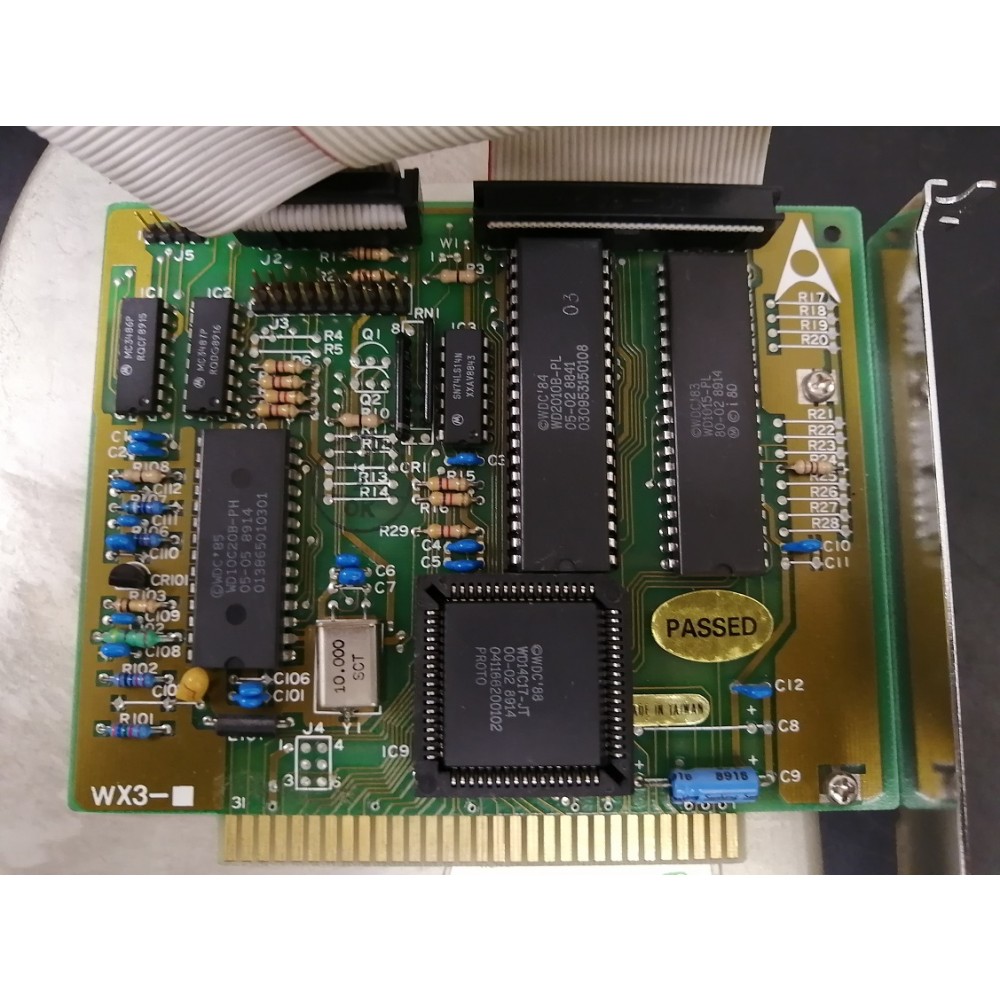

Incluye Controladora MFM WX3 y cables, funcionando.
Ideal para entendidos.
| Native| Translation |
| ------+-----+-----+----- |
| Form 5.25"/HH Cylinders 615| | | |
| Capacity form/unform 21/ 26 MB Heads 4| | | |
| Seek time / track 65.0/20.0 ms Sector/track 17| | | |
| Controller MFM / ST412 Precompensation 300 |
| Cache/Buffer KB Landing Zone 670 |
| Data transfer rate 0.625 MB/S int Bytes/Sector 512 |
| 0.625 MB/S ext |
| Recording method MFM operating | non-operating |
| -------------+-------------- |
| Supply voltage 5/12 V Temperature *C 10 45 | -40 60 |
| Power: sleep W Humidity % 8 80 | 5 90 |
| standby 14.8 W Altitude km -0.305 3.048| -0.305 9.140 |
| idle W Shock g 10 | 40 |
| seek W Rotation RPM 3600 |
| read/write 33.0 W Acoustic dBA |
| spin-up W ECC Bit |
| MTBF h 100000 |
| Warranty Month |
| Lift/Lock/Park NO Certificates CSA,TUV,UL478,VDE |
